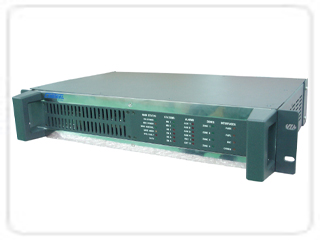

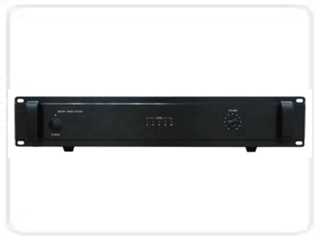

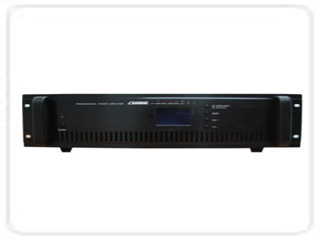

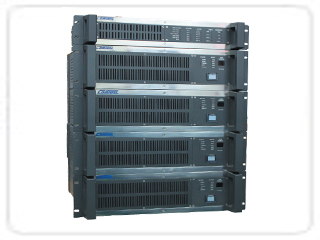

PA-I Series

Overview:

These power amplifiers efficiently drive up to 1500 watts of clean reliable audio for the most demanding public address applications. Rugged and over-built to give years of dependable service, they are equipped with torrodial power transformers, extensive heat sinking, fan cooling and protective circuits

Available Models:

• CA-360PA I - 360W
• CA-460PA I - 460W
• CA-660PA I - 660W
• CA-1000PA I - 1000W
• CA-1500PA I - 1500W

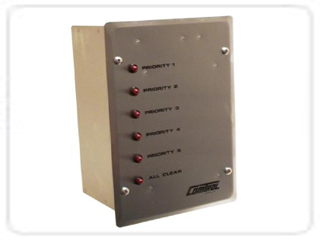

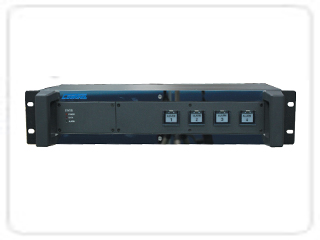

Audio Messenger

Overview:

Comtrol digital tone and message generator is a fully duplicated system, it is designed using the latest digital audio processing technology, it stores up to 8 controllable alarm tones/messages. Manual activation switches and alarm bypass key-switch are provided for extra-control flexibility during emergency situations. It can be easily integrated into Comtrol PAGA and Page & Party systems.

Features:

• Microcontroller based
• Fully redundant system
• Compact design
• Opto-isolated inputs
• With Priority Latching

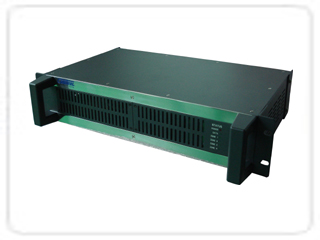

Audio Distribution Module

Comtrol digital tone and message The Audio Distribution Module is an interface between ComTrol PAGA/ Page & Party system and standard audio amplifiers with balanced input. It can distribute up to 4 audio zones with a maximum of 10 amplifiers per zones.

Telephone Interface

Features:

The telephone-interface can automatically answer an incoming phone call and broadcast the caller's voice over the public address system. A microphone input is provided for talking back to the caller. It can also be used to remotely start up the PA system and activate other equipments.

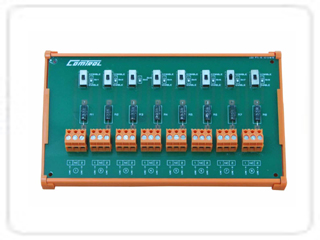

Line Supervisory

Features:

This high quality, compact line supervisory 10 independent circuits supervising up to 10 zones, and LED monitors the status of each zone.

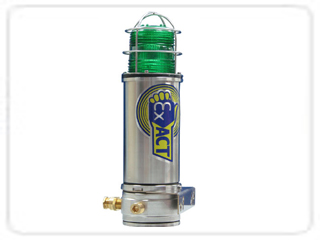

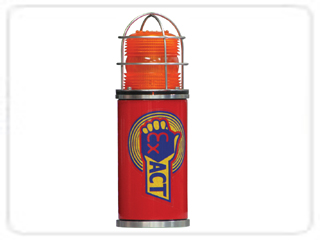

MS1-EEx/De Beacon

Available Models:

• Flashing Beacon - MS1/X/de (High Intensity Xenon Flash)
• Steady Light Beacon - MS1/F/de (Non Flashing Fluorescent)

Features:

• Finest quality Luminaire in stainless steel
• EEx ‘d’ enclosure
• EEx ‘e’ terminals
• High intensity flash
• ATEX Certified EEx de IIC T4 (Zone1)
• External coloured lens
• Telephone ring detector (MS1/X/de/TRD)

MS1-EEx/D Beacon

Models Available:

• Flashing Beacon - MS1/X/d (High Intensity Xenon Flash)
• Steady Light Beacon - MS1/F/d (Non Flashing Fluorescent)

Features:

• Finest quality Luminaire in stainless steel
• EEx 'd' enclosure
• High intensity flash
• Certified T4 at ambient temperature of +50°C
• External coloured lens
• Telephone Ring Detector(MS1/X/d/TRD)
• ATEX Certified for Zone1, Group II

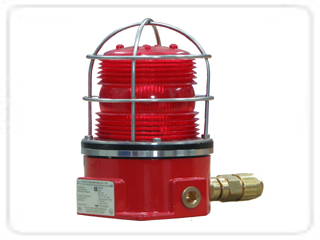

MS4-EEx/D Beacon

Models Available:

• Flashing Beacon - MS4/X/d (High Intensity Xenon Flash)
• Steady Light Beacon - MS4/F/d (Non Flashing Fluorescent)
• Flashing/Steady light Beacon (LED) - MS4/L/d

Features:

• Finest quality Luminaire in stainless steel
• EEx 'd' enclosure
• Highly visible flash
• Certified T5 at ambient temperature of +50°C
• Certified T5 or T6 (MS4-LED Model)
• External coloured lens
• Telephone ring detector (Only for MS4-LED model )
• ATEX Certified for Zone1, Group II

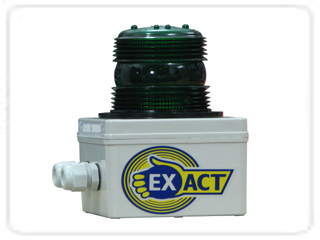

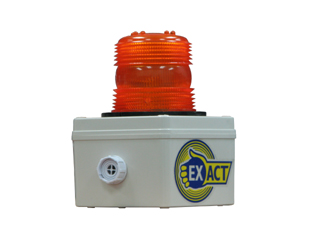

MS3 Beacon With Ring Detector

Models Available:

• Flashing Beacon - MS3/X-High Intensity Xenon Flash
• Steady Light Beacon - MS3/F-Non-flashing Fluorescent-10W
• Flashing/Steady Light beacon - MS3(LED)

Features:

• Sounder / Beacon
• Finest quality
• Corrosion resistant
• High intash
• External coloured lens
• Up to 107 dBA
• IP65
• Telephone Ring Detector

MS3 Beacon With Sounder

Features:

• Sounder / Beacon
• Finest quality
• Corrosion resistant
• High intensity flash
• External coloured lens
• Up to 107 dBA
• IP65
• Telephone Ring Detector

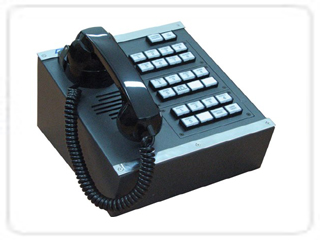

Desktop Station

Models Available:

• ES1745AG/MA/5Z/5A - Five Zone Master Station
• ES1745AG/MA/7Z/3A - Seven Zone Master Station
• ES1745AG/MA/20Z/8A - Twenty Zone Master Station
• ES1745AG/MA/31Z/8A - Thirty One Zone Master Station

Features:

• ES1745AG/MA/31Z/8A - Thirty One Zone Master Station
• Manual Alarm initiation with LED indication
• Transformer-isolated power supply, 24 volts DC internal voltage
• Adjustable handset amplifier volume to match existing systems
• Magnetic off-hook switch
• Sealed off-hook and page relays
• LED off-hook indication
• Noise-cancelling microphone prevents ambient noise pickup and feedback
• Transformer-isolation of handset and internal speaker line
• ES1795 Remote amplifier is used with these models.
• Available in 110/230 VAC and 24VDC

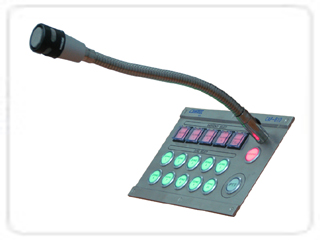

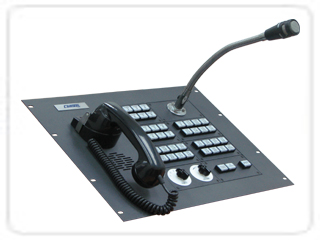

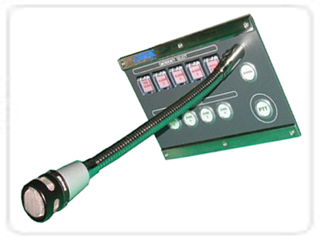

Flushmount Station

Models Available:

• ES2115MI/20Z - Twenty Zone Flush Mount Station
• ES2115MI/31Z/8A - Thirty One Zone Flush Mount Station

Features:

• Zone control with Merging & Isolation of Zones with LED indication
• Manual Alarm initiation with LED indication
• System status Indication
• Gooseneck Microphone
• Transformer-isolated power supply, 24 volts DC internal voltage
• Adjustable handset amplifier volume to match existing systems
• Magnetic off-hook switch
• Sealed off-hook and page relays
• LED off-hook indication
• Noise-cancelling microphone prevents ambient noise pickup and feedback
• Transformer-isolation of handset and internal speaker line
• ES1795 Remote amplifier is used with these models
• No amplifier gain increase when signal is not present.

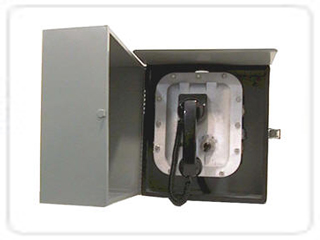

Explosion Proof Stations Class I Div.1

Models Available:

• RP2115 - Five Party Station - Wireless
• RP2111 / RP2131- Single Party Stations - Wireless
• UA2001 / UA2031 - Single Party Stations - Wired
• UA2002 / UA2032 - Five Party Stations - Wired
• UA2007 / UA2008 / UA2037 - Five Party Paging Stations (24VDC) - Wired

Features:

• 20 Watts of audio output.
• Available in 110 VAC and 24 VDC
• Transformer-isolation of power and speaker lines.
• Conformal coating on all printed circuit boards.
• Factory Mutual approved for Class I, Div. 1, Groups B,C and D; and Class II, Div. 1, Groups E, F, and G.

For Wireless Models:

• Range up to 2 miles
• Relocate or add stations without additional wiring.
• No stations interconnecting wires.
• Factory Mutual approved for Class I, Div. 1, Groups C and D; and Class II, Div. 1, Groups E, F, and G.

Explosion Proof Station Class I Div.2

Models Available:

• RP1921D2 / RP1931D2 - Single Party Station-Wireless
• RP1925D2 / RP1935D2 - Five Party Station-Wireless
• ES1664AG / ES1666AG - Single Party Station - Wired
• ES1665AG / ES1667AG - Five Party Station - Wired

Features:

• 20 Watts of audio output.
• Transformer-isolated power supply, 48 volts DC internal voltage.
• 110 VAC
• Transformer-isolation of power and speaker lines.
• Short circuit protection of power transistors.
• No amplifier gain increase when signal is not present. This reduces system feedback and loading problems.
• Stainless steel construction, Type 304 brushed finish.
• Conformal coating on printed circuit boards.
• Plug-in front panel.
• Off-hook LED indication.
• Magnetic off-hook switch.
• Sealed off-hook and page relays.
• Factory Mutual approved: Class I, Div. 2, Groups A, B, C, and D; and Class II, Div.2, Groups F and G

For Wireless Models:

• Range up to 2 miles
• Relocate or add stations without additional wiring.
• No stations interconnecting wires.
• Factory Mutual approved for Class I, Div. 1, Groups C and D; and Class II, Div. 1, Groups E, F, and G.

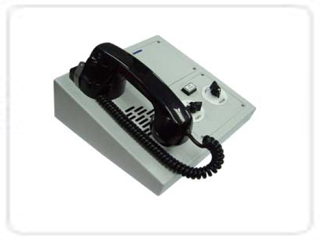

Desktop Handset Station

Models Available:

• ES1745 - Five Party Desktop Station
• ES2101 - Single Party Desktop Station
• ES2105 - Five Party Desktop Station

Features:

• Single Party and Five Party versions are available
• 20 watts of audio output.
• Transformer-isolated power supply, 48 volts DC internal voltage.
• Available in 110/230 VAC and 24 VDC
• Adjustable handset amplifier volume to match existing systems.
• Desktop has no voltage in unit.
• Magnetic off-hook switch.
• Sealed off-hook and page relays.
• Electret Microphone
• Transformer-isolation of power, handset, and speaker lines.
• Short circuit protection of power transistors.
• No amplifier gain increase when signal is not present. This reduces system feedback and loading problems.
• Can be wall or desk mounted
• ES1795, ES 2102 and ES 2106 Remote amplifiers are used with these models.
• Stainless Steel Enclosure

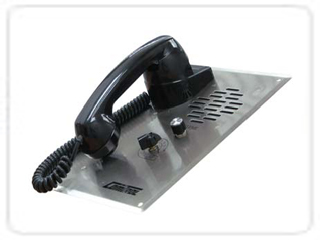

Flushmount Handset Station

Models Available:

• ES2125 - Five Party Flush Mount Station

Features:

• 20 watts of audio output.
• Transformer-isolated power supply, 48 volts DC internal voltage.
• Adjustable handset amplifier volume to match existing systems.
• Magnetic off-hook switch.
• Sealed off-hook and page relays.
• Built-in speaker for page monitoring.
• Noise-canceling microphone prevents ambient noise pickup and feedback.
• Transformer-isolation of power,handset, and speaker lines.
• Short circuit protection of power transistors.
• ES2116 Remote Amplifier is used
• No amplifier gain increase when signal is not present. This reduces system feedback and loading problems.

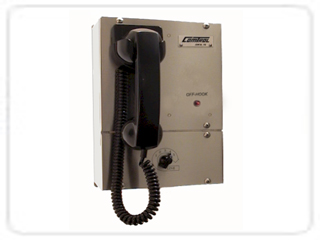

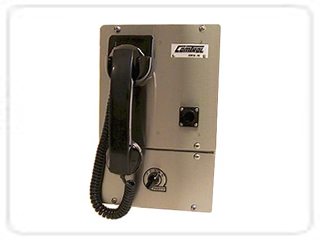

Field Handset Station

Models Available:

• ES3664A / ES3666A - Single Party Indoor/Outdoor
• ES3665A / ES3667A - Five Party Indoor/Outdoor
• ES1664AG/HE / ES1666AG/HE - Single Party with Headset Connector Indoor/Outdoor
• ES1665AG/HE / ES1667AG/HE - Five Party with Headset Connector Indoor/Outdoor

Features:

• Ambient adjusted output level.
• Local sensor for noise detection.
• 20 watts of audio output.
• Transformer-isolated power supply, 48 volts DC internal voltage.
• Available in 110/230 VAC and 24 VDC
• Transformer-isolation of power, and speaker lines.
• Short circuit protection of power transistors.
• No amplifier gain increase when page is not present. This reduces system feedback and loading problems.
• Stainless steel construction, Type 304 brushed finish.
• Conformal coating on printed circuit boards.
• LED off-hook indication.
• Plug-in front panel.
• Magnetic off-hook switch.
• Sealed off-hook and page relays.
• Remote sensor available

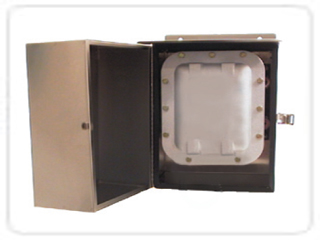

Explosion Proof Speaker Amplifier Class I Div.1

Models Available:

• UA2010 / UA2040 - Indoor/Outdoor Speaker Amplifiers
• UA2015 / UA2046 - Indoor/Outdoor Speaker Amplifiers (24VDC)

Features:

• 20 watts of audio output.
• Transformer-isolated power supply, 48 volts DC internal voltage.
• Available in 110VAC and 24 VDC
• Transformer-isolation of power and speaker lines.
• Short circuit protection of power transistors.
• No amplifier gain increase when signal is not present. This reduces system feedback and loading.
• Plug in replaceable front panel assembly.
• Conformal coating on all printed circuit boards.
• Factory Mutual approved Class I, Div. 1, Groups B, C, and D; and Class II, Div. 1, Groups E, F, and G.

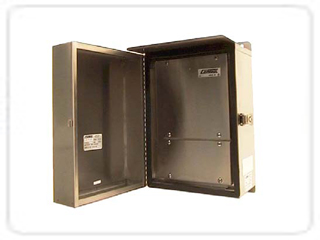

Explosion Proof Speaker Amplifier Class I Div.2

Models Available:

• ES1610AG / ES1653AG - Indoor/Outdoor Speaker Amplifier

Features:

• 20 watts of audio output.
• Transformer-isolated power supply, 48 volts DC internal voltage.
• 110 VAC
• Transformer-isolation of power, and speaker lines.
• Short circuit protection of power transistors.
• No amplifier gain increase when signal is not present. This reduces system feedback
• and loading problems.
• Stainless steel construction , Type 304 brushed finish.
• Conformal coating on printed circuit boards.
• Plug-in front panel
• Sealed page relay.
• Factory Mutual Approved: Class I, Div. 2, Groups A, B, C,and D; and Class II, Div. 2, Groups F and G.

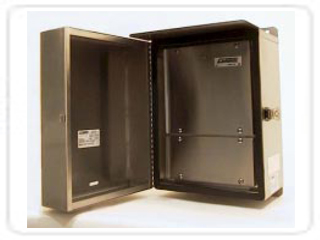

Safe Area Speaker Amplifier

Models Available:

• ES3610AG / ES3653AG - Indoor/Outdoor Speaker Amplifier
• SSA1600R - Outdoor Speaker Amplifier
• SSA1610R - Indoor Speaker Amplifier

Features:

• Ambient adjusted output level.
• Local sensor for noise detection.
• 20 watts of audio output.
• Transformer-isolated power supply, 48 volts DC internal voltage.
• Available in 110/230 VAC
• Transformer-isolation of power, and speaker lines.
• Short circuit protection of power transistors.
• Unitized design allows easy additions or changes to system.
• No amplifier gain increase when page is not present. This reduces system feedback and loading problems.
• Stainless steel construction, Type 304 brushed finish.
• Conformal coating on printed circuit boards.
• Plug-in front panel.
• Magnetic off-hook switch.
• Sealed off-hook and page relays.
• Remote sensor available.

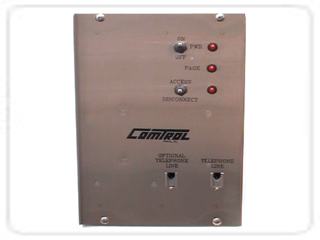

Telephone Coupler

Models Available:

• CU1623 - Excell Sound to Telephone Coupler
• CU1623A - Excell Sound to Telephone Coupler for use in relay cabinet.

Features:

• Couples telephone system to Excell Sound system.
• Answers on customer selected number of rings.
• Easy Access/Disconnect switch provided for local or remote.
• Easy installation.
• Available in 110/230 VACEasy adjustment [LED null adjustment]
• Jack provided for an additional local telephone.
• LED indicators for off-hook, page, and power on conditions.
• Stainless steel housing, Type 304 brushed finish.
• Powered by 120 VAC, 50/60 Hz.
• Automatic hang-up.
• Large terminals for customer connections.
• Conformal coating on printed circuit boards.
• Stainless steel construction, Type 304 brushed finish.

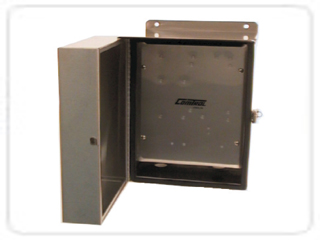

Radio Coupler

Models Available:

• CU1626 - Radio to Page Line Coupler
• CU1626A - Radio to Page & Party Line Coupler

Features:

• Couples handheld radio system to Excell Sound.
• Provides communication link to page & party line of hard wired systems.
• A voice actuated relay provides automatic operation.
• An electronic voice delay circuit retains the first syllable of a conversation.
• Transformer isolation 120 VAC on input.
• Radio squelch operation sets direction and establishes priority.
• Conformal coating on all printed circuit boards.
• Stainless steel housing Type 304 brush finish.
• Match existing VHF 150-174, UHF 450-470 frequency range.

Multi-Tone Generator

Models Available:

• AT1605 - Five tone generator with 120 VAC input
• AT1610 - Ten tone generator with 120 VAC input
• AT1615 - Five tone generator with priority latching and 120 VAC input
• AT1617 - Seven tone generator with priority latching and 120 VAC input
• AT1655 - Five tone generator with 24 VDC input
• AT1665 - Five tone generator with priority latching and 24 VDC input
• AT1610CA - Eight tone generator with 24 VDC input and 10 opto-isolated inputs with Priority

Features:

• Adjustable alarm muting to allow paging during alarm.
• Stainless steel, Type 304, brushed finish enclosure and front panel.
• Interfaces with all standard audio systems.
• Five, seven, or ten distinctively different tones.
• Remote reset.
• All electronics mounted on the front panel.
• Conformal coating on all printed circuit boards.
• Barrier-type terminal blocks for customer connections.
• Available with priority latching

Line Balance Assembly

Models Available:

• UA1509 - Line Balance Assembly

Features:

• Stainless steel housing.
• 33-ohm fixed resistors.
• Barrier-type terminal connections.
• Dust tight construction.
• Corrosion resistant stainless steel construction.
• Compact design.
• NEMA 3 rating (Equivalent to IP54).
• T5- NEC Temperature rating.

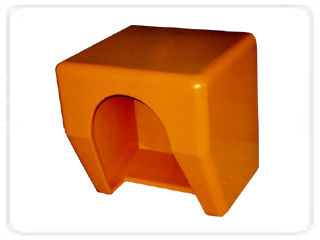

Accostic Hood EB1501

Features:

• The EB1501 Acoustic Hood is specifically designed for installation and service in all industrial, marine, petrochemical and offshore environments.
• Inherent quality of materials, construction and design ensure noise reduction of up to “9”dB.

Accostic Hood EB1503

Features:

• The EB1503 Acoustic Hood is specifically designed for installation and service in all industrial, marine, petrochemical and offshore environments.
• Inherent quality of materials, construction and design ensure a high level of noise reduction of up to 23dB.

Acoustic Hood EB1505

Features:

• EB1505, Acoustic Hood is specifically designed for installation and service in all industrial, marine, petrochemical and offshore environments

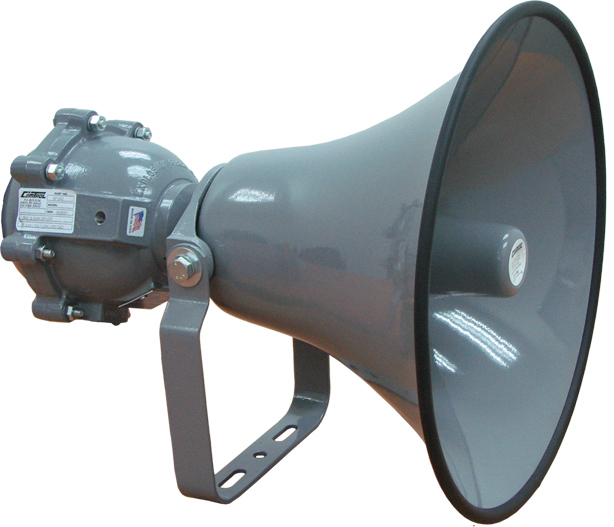

Reflex Projector Horn Speaker Class I Div.1

Features:

• High efficiency and directivity.
• Spun aluminum with epoxy coating.
• Steel mounting bracket provides easy vertical positioning.
• 30W Compression driver Class1 Div.1, Groups C & D

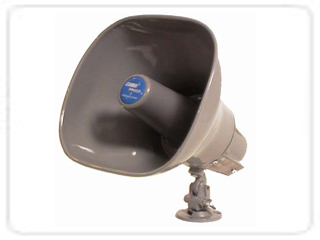

Horn Speaker With Epoxy Coating-Class I Div.2

Features:

• Wide frequency response for optimum sound quality.
• Swivel base allows precise positioning.
• Spun aluminum with epoxy coating.
• SP1512D2 model is Factory Mutual approved for Class I, Div. 2, Groups A, B, C, and D; Class II, Div. 2, Groups F and G.

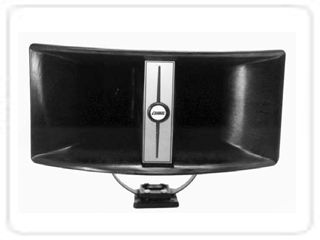

Bi-Axial Wide Angle Horn Speakers-Class I Div.2

Features:

• Wide-angle sound coverage 130 deg x 60 deg
• 8-ohm or 16-ohm compression driver
• Nominal frequency response of 350-8,000 Hz
• High intelligibility voice, signaling, and full-range musical tones.
• Patented 180 deg Gimbal-mount for installation flexibility.
• SP1559D2 / SP1558D2 drivers are Factory Mutual approved: Class I, Div. 2, Groups A, B, C, and D; Class II, Div. 2, Groups F and G.

Horn Speaker (SP 1512)

Features:

• Wide frequency response for optimum sound quality.
• Swivel base allows precise positioning.
• Spun aluminum with epoxy coating.
• SP1512

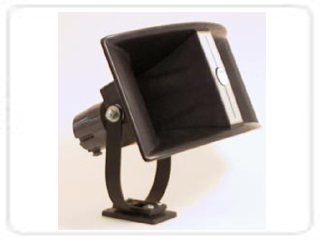

Horn Speakers (SP 1596)

Features:

• Wide-angle sound coverage 130 deg x 60 deg
• 8-ohm and 16-ohm compression driver
• Spun aluminNominal frequency response of 350-8,000 Hz
• High intelligibility voice, signaling, and full-range musical tones.
• Patented 180 deg Gimbal-mount for installation flexibility.
• SP 1559 / SP 1558 Driver

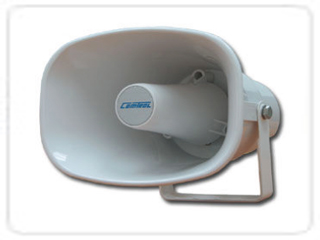

Horn Speakers (SCA-200)

Features:

• Horn speaker with ABS enclosure treated with Polyurethane resin paint.
• Has an IP Rating of IP 66
• Horn speaker with ultraviolet resistance and weatherproof for efficient outdoor use.
• 2 models are available - SCA-201 & SCA-202.

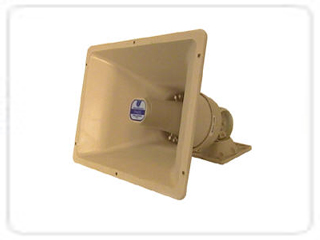

Constant Directivity Horn Speakers

Features:

• Constant directivity paging projector.
• High impact plastic
• Finish Mesa Tan.
• Swivel base allows precise positioning

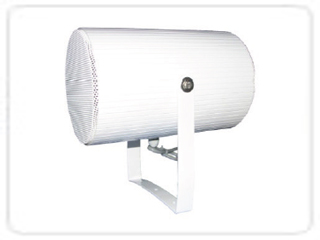

Projection Speakers

Features:

• Projection speaker with aluminium enclosure covered with resin paint.
• SCA-401 & SCA-402, projection speakers are meant for indoor use and they are a bi-directional speakers.
• Has an IP rating of IP 66

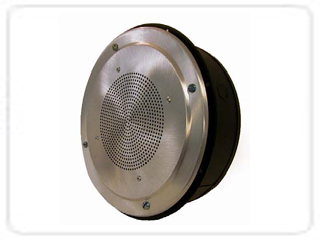

Ceiling Speakers (Wide Angle)

Features:

• Designed for voice and music systems.
• Wide area dispersion.
• Single gang plate with volume control.

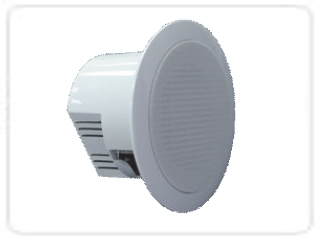

Ceiling Speakers (SCA-100)

Models Available:

• SCA-101
• SCA-102
• SCA-103

Features:

• This innovative ceiling speaker comes with speaker dome made of ABS. The ABS fire dome gives the speakers additional protection.

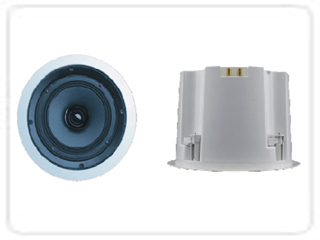

Ceiling Speakers (SCA-700)

Features:

• This high sensitive ceiling speaker comes with ABS enclosure for additional protection.

SCA-300

Models Available:

• SCA-301
• SCA-302VC6 (with volume controller)
• SCA-303

Features:

• This Wall-mount speaker comes with a wooden casing – compact and apt for indoor use.

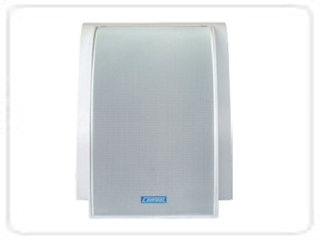

SW-10T

Features:

• The highly durable wall-mount speakers features dual cone with excellent sound.
• Compact fashionable.

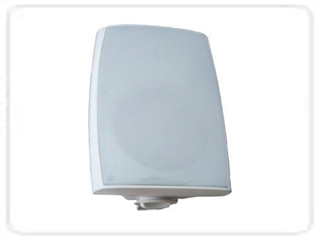

SW-20T

Features:

• The highly durable wall-mount speakers features dual cone with excellent sound.
• Compact fashionable.

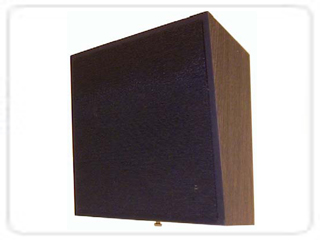

SP1623

Features:

• Designed for high quality distributed music and paging systems.
• Baffle constructed of .5-inch particle board.
• Walnut wood grain laminates with acoustically correct cane grille cloth.
• Available with volume control (SP1623A).

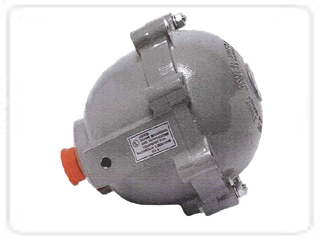

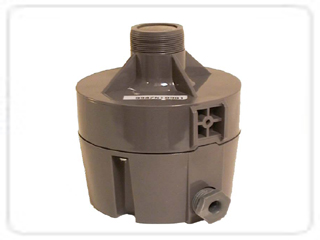

30W Driver - Class I Div.1

Features:

• SP1642 Compression Drivers, 30 Watts
• Factory Mutual approved for Class I Div.1,Groups C & D

30W Driver - Class1 Div.2

Features:

• Low distortion.
• Weather proof housing
• Easy field replacement.
• Ideal for indoor and outdoor applications.
• Available in 8 ohm and 16 ohm.
• SP1559-D2 is Factory Mutual approved: Class I, Div. 2, Groups A, B, C, and D; Class II, Div. 2, Groups F and G.

60W Driver-Class I Div. 2

Features:

• Low distortion.
• Weather proof housing
• Easy field replacement.
• Ideal for indoor and outdoor applications.
• Available in 8 ohm and 16 ohm.
• SP1558-D2 is Factory Mutual approved: Class I, Div. 2, Groups A, B, C, and D; Class II, Div. 2, Groups F and G.

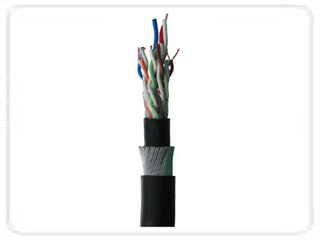

System Cables

Features:

• Flame Retardant Jacketing.
• Moisture and Sun resistant.
• Conforms to IEC Standards

Options

• Poly Vinyl Chloride sheath
• Lead sheath.
• Cross-Linked Poly Ethylene tubing or sheath.
• Jelly Filled sheath.
• Low-Smoke-Zero-Halogen sheath.
• Galvanized SteelWire Armoring
• Bronze or Stainless Steel Braided
